High-Resolution Mapping System

FLexiBox

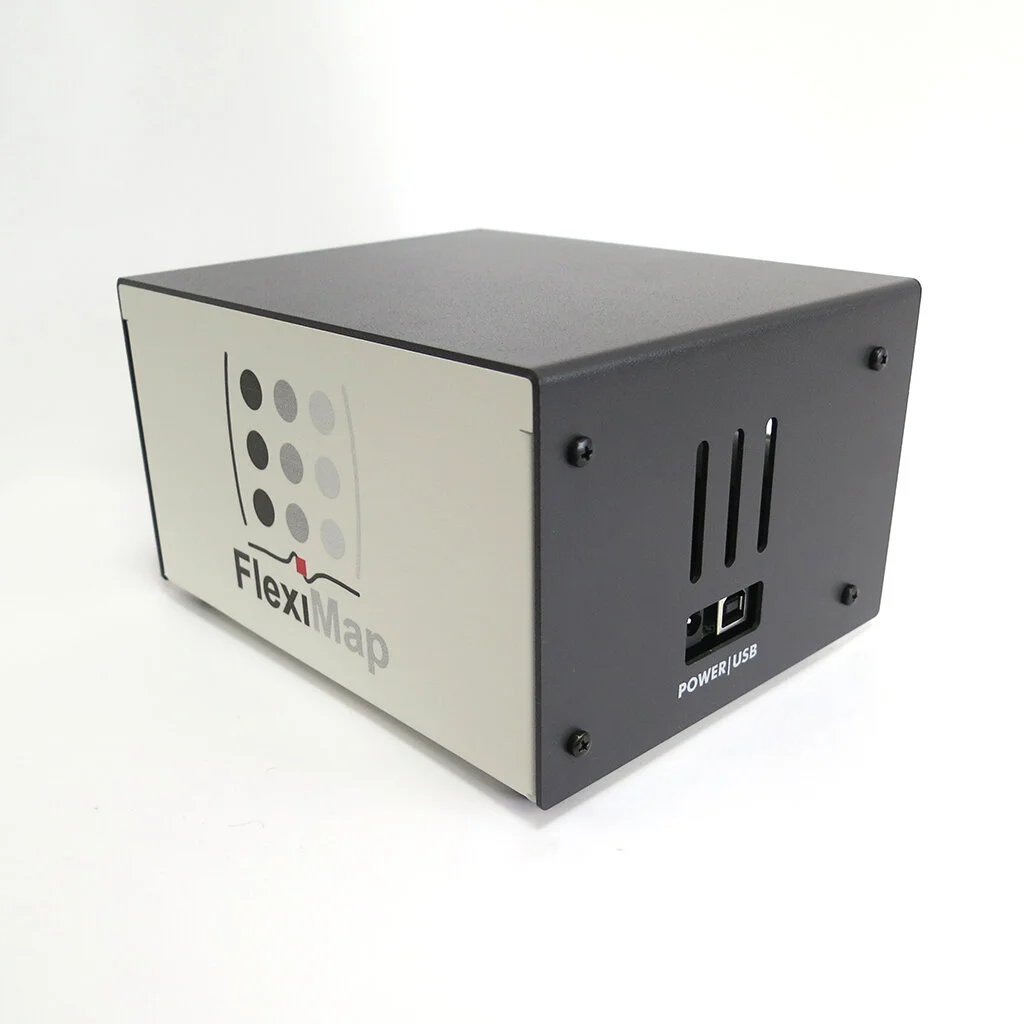

Multi-channel recordings made easy. The FlexiBox is a modular and portable multi-channel high resolution bioelectrical measurement system suitable for research applications.

Technical specifications:

  • Sampling frequency between 1 to 30kHz.

  • High frequency cutoff adjustable 100 Hz to 20 kHz. Low frequency cutoff adjustable between 0.1-500 Hz.

  • Amplifier range ±5 mV with 16-bitsampling resolution.

  • True zero gain at DC rejects electrode offset voltages.

  • RMS noise levels of 2 /muV.

  • Dimensions: 170 mm (W) x 100 mm (H) x 145 mm (D).

 Inputs:

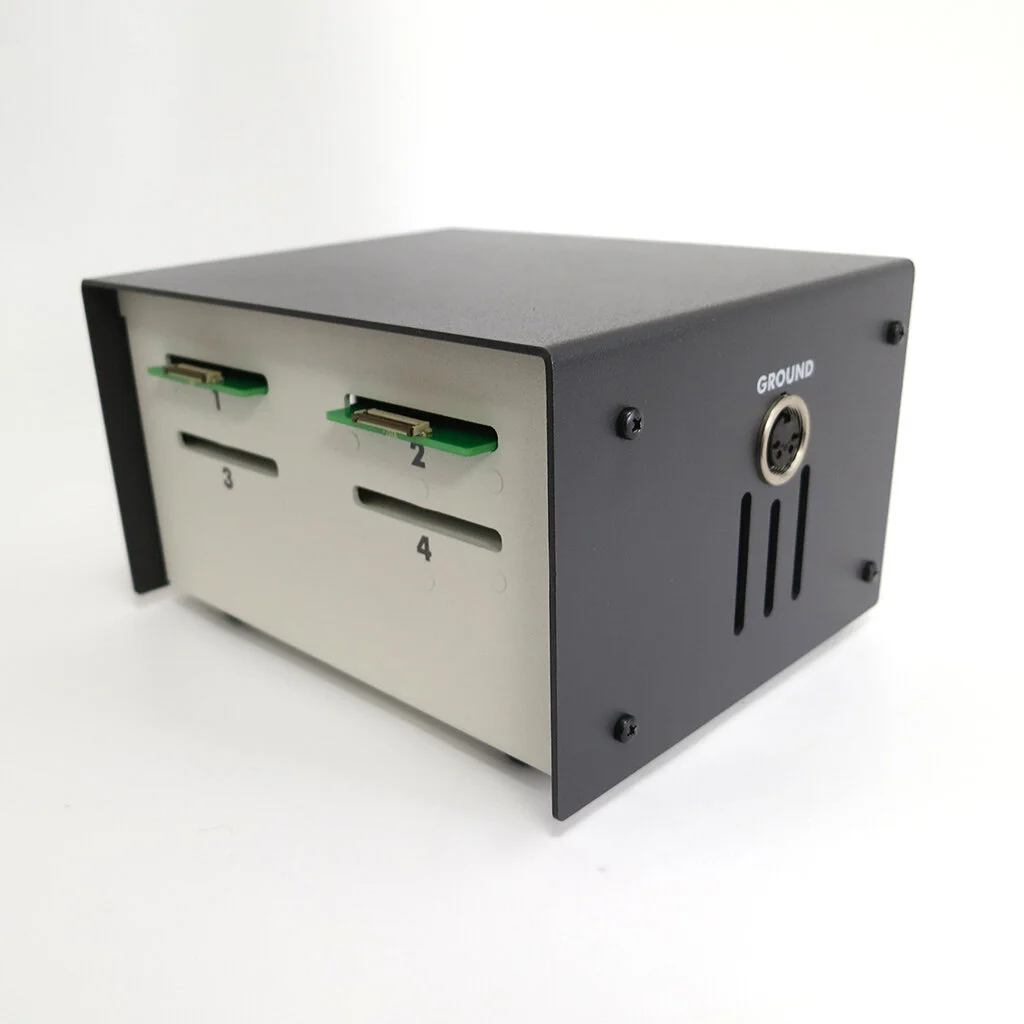

  • Modular 32 channel amplifier system. Provides between 32 to 128 unipolar recording channels.

  • Compatible with all FlexiMap high-resolution electrode arrays (links).

  • PC Interface via USB 2.0. (compatible with Windows 7 and above). Custom visualisation software.

  • Powered by 5V AC adaptor.

Contact us now.
