ECG body-surface recording

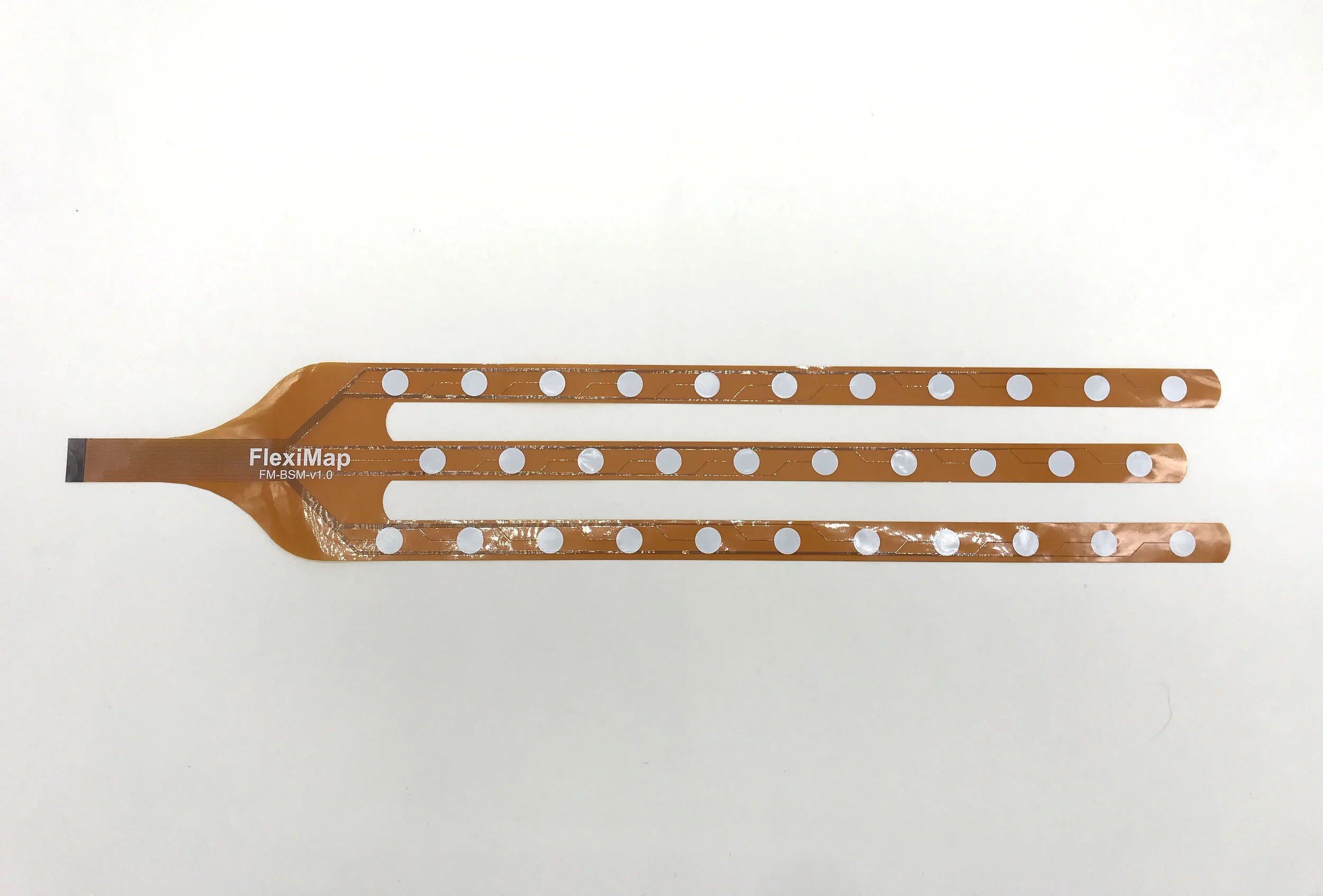

FlexiMap:BSM ECG

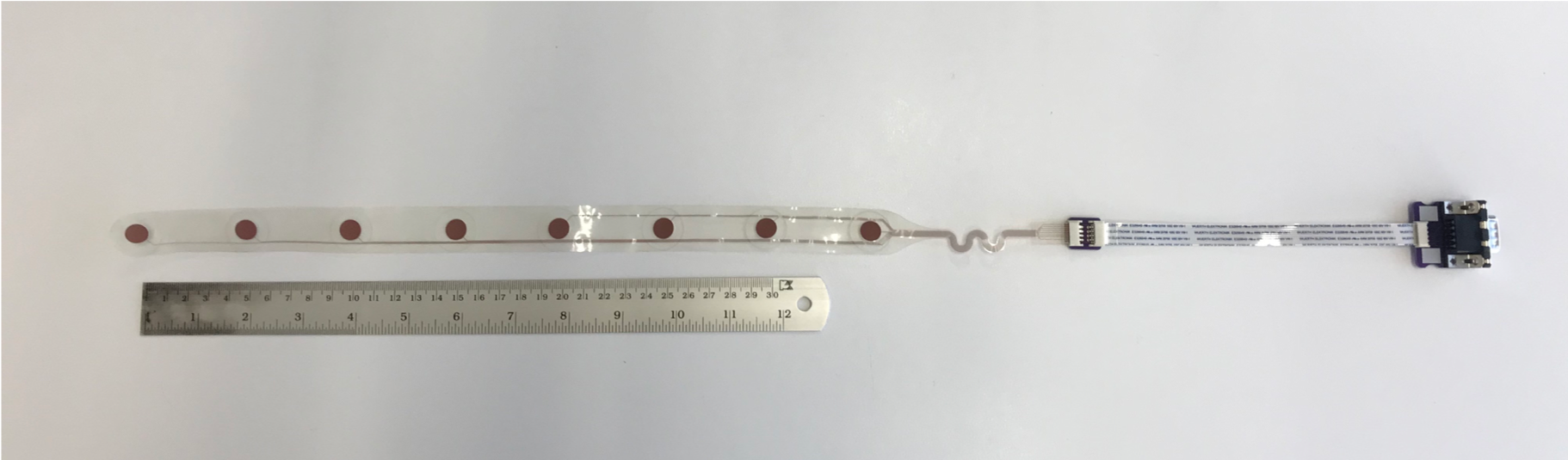

Flexible electrode arrays designed for in-vivo research. The FlexiMap BSM ECG is a custom resolution to body-surface ECG recordings designed for research use.

Technical specifications:

Channel Count: up to 32 electrode per array

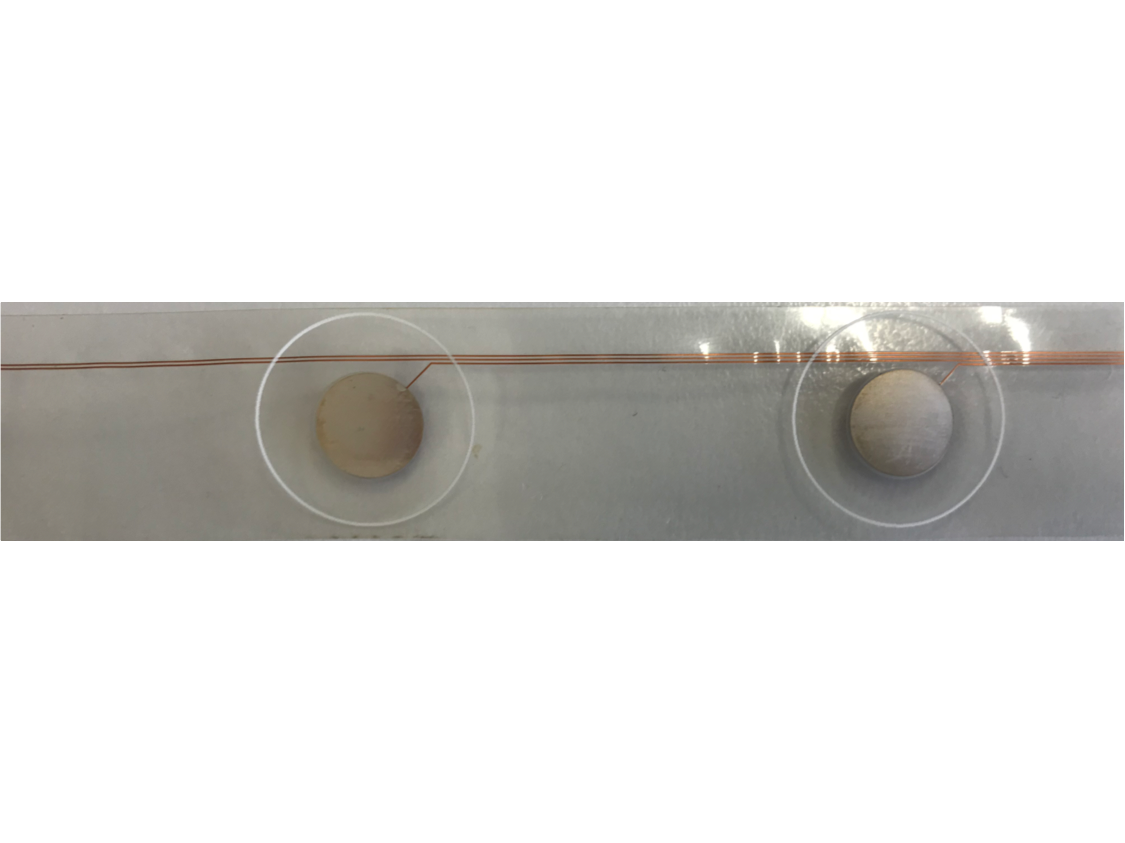

Electrode: Gold/Ag/AgCl
Electrode Spacing: customisable
Electrode Head: customisable
Array Length: up to 600 mm
Electrode Track Width: 0.2 mm
Base materials: PI (standard) or PET (transparent)

Features:

Suitable for repeat use and sterilization with Sterrad (ASP) and V-Pro (STERIS).
Zero insertion force connectors and adapters.
